Concave Mirror Ray Diagram – Class 11 Physics

In Class 11 Physics (Ray Optics), the study of mirrors is a fundamental step toward understanding image formation. A concave mirror, also called a converging mirror, is a spherical mirror with its reflecting surface curved inward. These mirrors are extensively used in scientific instruments, telescopes, headlights, and shaving mirrors due to their ability to form both real and virtual images.

To master this concept, it is essential to understand ray diagrams, which graphically represent how light rays behave when incident on a concave mirror. These diagrams help visualize where an image will form, its size, and whether it will be real or virtual.

Basic Terms Related to Concave Mirrors

Before diving into ray diagrams, let us recall some fundamental terms:

• Pole (P): The geometric center of the mirror’s surface.
• Centre of Curvature (C): The center of the sphere from which the mirror is cut.
• Radius of Curvature (R): Distance between pole and centre of curvature.
• Principal Axis: A straight line passing through the pole and the centre of curvature.
• Focus (F): The point where rays parallel to the principal axis converge after reflection.
• Focal Length (f): Distance between pole (P) and focus (F), related as f=R/2

Understanding these terms is crucial because each ray diagram depends on these reference points.

Do Check: Classified Advertisement Class 11 Format

Rules of Ray Reflection in Concave Mirrors

While infinite rays can be drawn to trace image formation, in practice, a few standard rules make diagrams simpler and more accurate:

• Parallel Ray Rule: A ray parallel to the principal axis passes through the focus after reflection.
• Focus Rule: A ray passing through the focus reflects parallel to the principal axis.
• Centre Rule: A ray passing through the centre of curvature reflects back on the same path.
• Pole Rule: A ray incident on the pole reflects symmetrically, obeying the law of reflection.

Using these rules, we can draw accurate ray diagrams for any object position.

Image Formation by Concave Mirrors (Ray Diagrams)

1. Object at Infinity

• Rays parallel to the principal axis converge at the focus.
• Image: At focus (F), highly diminished, real, and inverted.

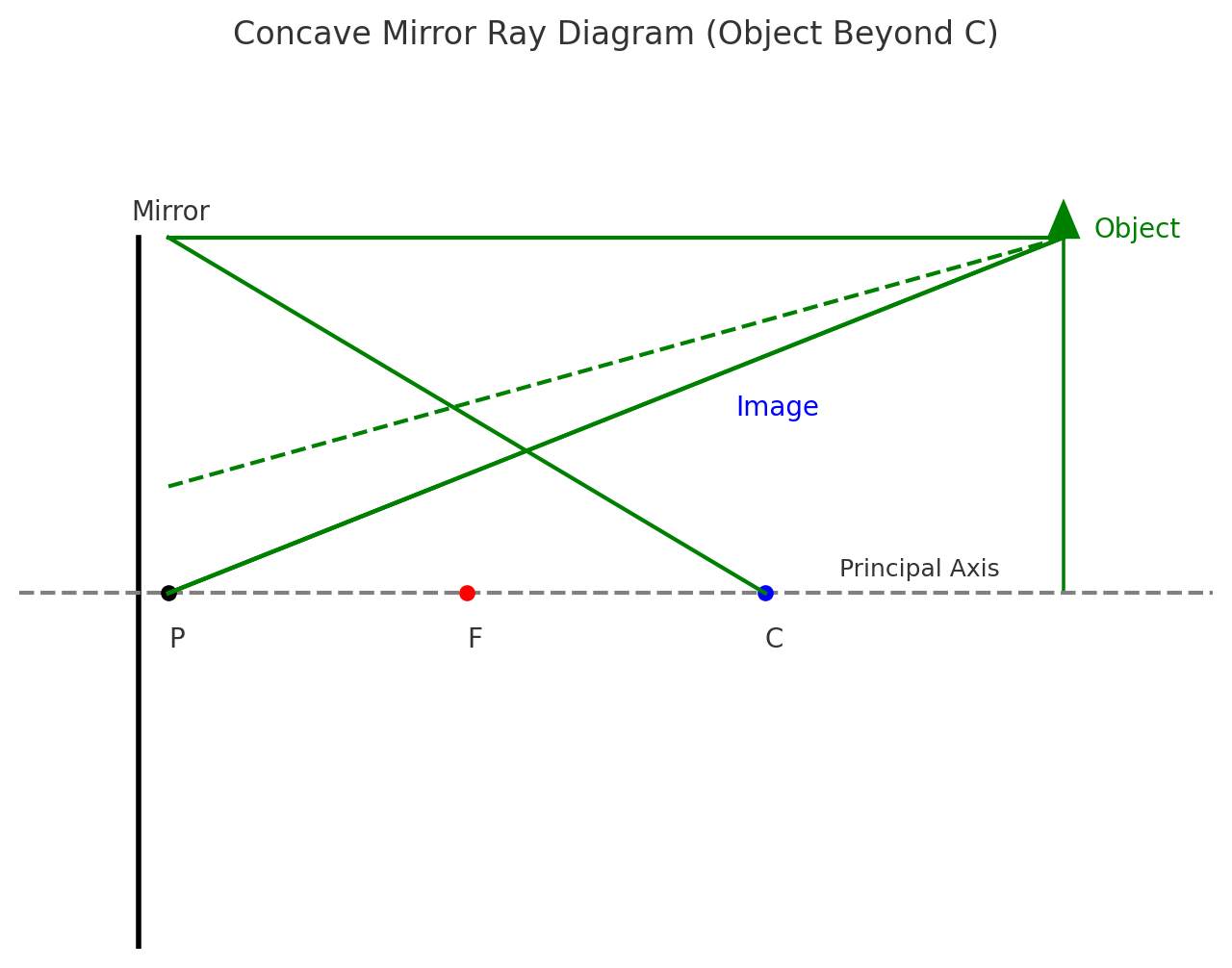

2. Object Beyond Centre of Curvature (C)

• Rays meet between C and F.
• Image: Between C and F, diminished, real, inverted.

3. Object at Centre of Curvature (C)

• Rays retrace paths after reflection.
• Image: At C itself, same size, real, inverted.

4. Object Between C and F

• Rays converge beyond C.
• Image: Beyond C, magnified, real, inverted.

5. Object at Focus (F)

• Rays reflect parallel and never meet.
• Image: At infinity, highly magnified, real, inverted.

6. Object Between Focus (F) and Pole (P)

• Reflected rays diverge but appear to meet behind the mirror.
• Image: Behind mirror, enlarged, virtual, and erect.

These six cases cover all possible positions of objects relative to a concave mirror.

Also Check: Note Making Class 11

Applications of Concave Mirrors

Concave mirrors are not just theoretical concepts; they have practical importance:

• Headlights & Torches: To project parallel rays of light.
• Shaving/Make-up Mirrors: Provide magnified, virtual, erect images when placed close.
• Solar Furnaces: Concentrate sunlight at focus to generate heat.

Telescopes & Microscopes: Used in reflecting systems for clearer and magnified views.

Importance in Class 11 Physics

Studying concave mirror ray diagrams strengthens conceptual clarity in optics. It builds the foundation for advanced topics like refraction, lenses, and wave optics in later chapters. It also develops problem-solving skills for competitive exams (NEET, JEE, Olympiads) where both numerical and conceptual questions appear.

Conclusion

The concave mirror ray diagram is one of the most important topics in Class 11 Physics. By learning the rules of reflection, practicing all six cases of image formation, and applying the mirror formula, students can confidently solve both theoretical and numerical problems. Understanding its applications in real life further builds appreciation for how physics principles shape technology.

In summary, concave mirrors demonstrate how simple reflective surfaces can form images ranging from tiny points to large magnified views, making them indispensable in both classrooms and practical life.
