The human eye is often described as the most precious gift of nature. For Class 11 Physics students, understanding the human eye diagram is crucial because it combines concepts of optics, physiology, and real-life applications. In this blog, we’ll explore the structure, working principle, key concepts, and common defects of vision with a clear cluster-based approach for easy learning.
1. Introduction to the Human Eye
The human eye functions like a natural optical instrument. Just like a camera, it focuses light to form sharp images. Its primary role is to sense light and send information to the brain, enabling us to see the world around us.
Also Check: Animal Cell Diagram

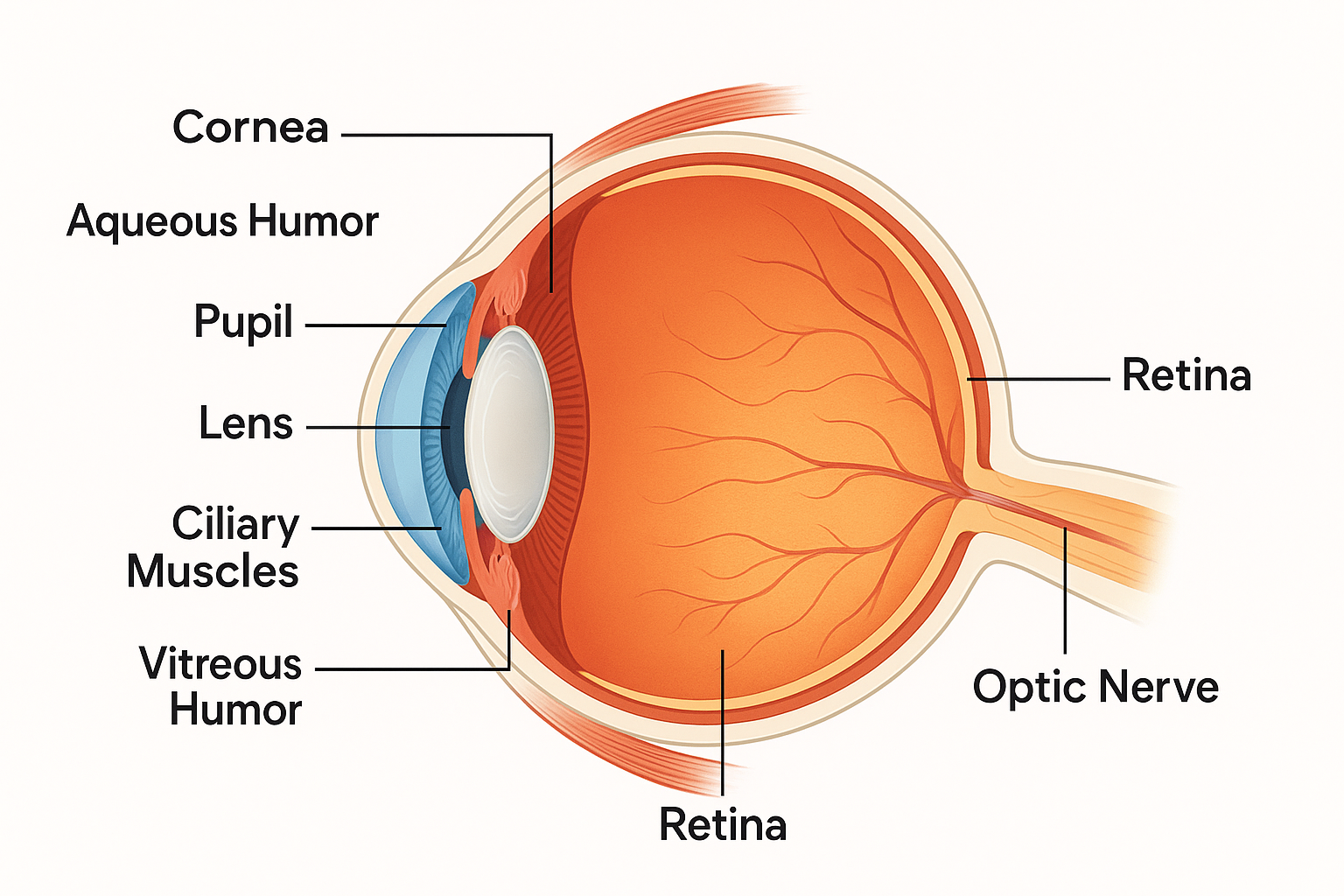

2. Structure of the Human Eye (with Diagram)
To study the human eye in Physics, we focus on its optical parts.
- Cornea – Transparent, curved surface that refracts incoming light.
- Aqueous Humor – Fluid that maintains pressure and helps in refraction.
- Pupil – Adjustable opening that controls the entry of light.
- Iris – Colored diaphragm that regulates pupil size.
- Lens – Convex lens that changes shape to focus light.
- Ciliary Muscles – Adjust the focal length of the lens.
- Retina – Light-sensitive layer containing rods and cones.
- Optic Nerve – Transmits visual signals to the brain.
Tip for Exams: Always draw and label a neat human eye diagram—it carries scoring weight in Class 11 board papers.
3. Working Principle of the Human Eye
- Light enters through the cornea.
- It is further refracted by the eye lens.
- A sharp image is formed on the retina.
- Retina converts light into electrical signals.
- Signals are carried by the optic nerve to the brain.
- Thus, the eye works as a living optical device with continuous adjustments.
Also Check: Classified Advertisement Class 11 Format | Poster Making Class 11
4. Key Concepts for Class 11 Students
- Power of Accommodation: The eye can adjust its focal length with the help of ciliary muscles.
- Near Point: Minimum distance at which a normal eye can see clearly (25 cm).
- Far Point: Maximum distance seen clearly by a normal eye (infinity).
- Persistence of Vision: The image stays on the retina for about 1/16th of a second, enabling us to perceive continuous motion in movies.
5. Common Defects of Vision
- Myopia (Short-sightedness) – Distant objects appear blurred. Correction: Concave lens.
- Hypermetropia (Long-sightedness) – Near objects appear blurred. Correction: Convex lens.
- Presbyopia – Age-related defect; corrected using bifocal lenses.
- Astigmatism – Caused by irregular curvature of the cornea/lens.
6. Applications and Importance
Foundation for optical instruments like cameras and microscopes.
Development of corrective lenses and spectacles.
Best Courses for You
JEE
NEET
Foundation JEE
Foundation NEET
CBSE
Essential for understanding real-life optics in medical and technological fields.
Conclusion
The human eye diagram is more than just a Class 11 Physics topic—it helps us appreciate the natural design of vision. By learning the structure, working, key concepts, and defects, students can score better in exams and also understand the science behind spectacles, cameras, and vision correction.
